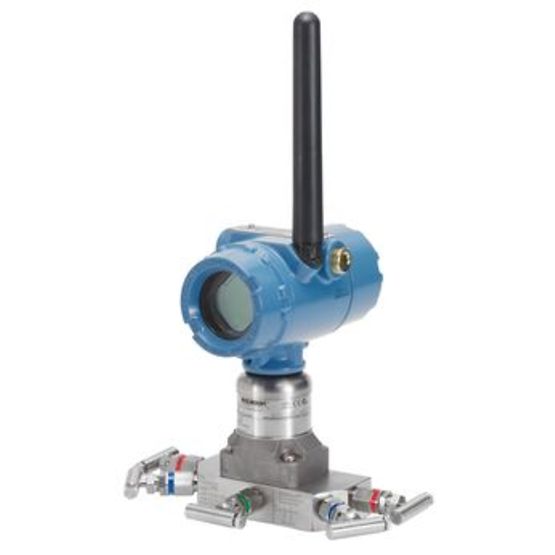

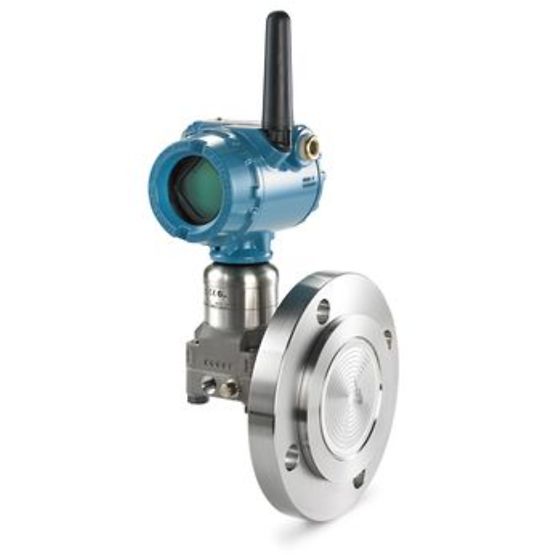

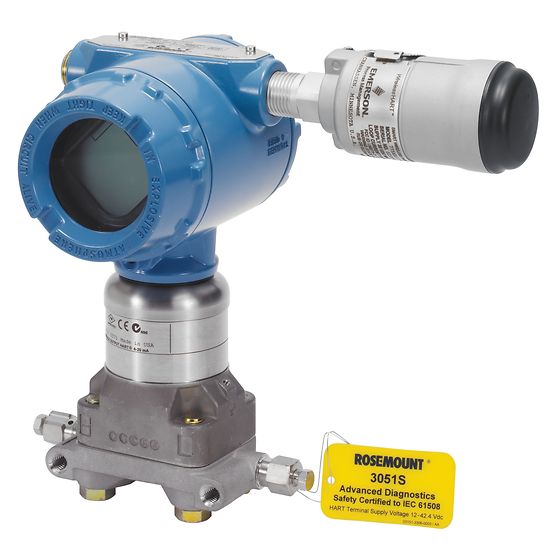

Rosemount™ Series 3051 Coplanar™ Pressure Transmitter

Rosemount™ 3051 Series

Rosemount 3051S Coplanar™ pressure transmitter is designed using coplanar technology and is the preferred solution for pressure, flow, and level measurement. This scalable platform uses wired and WirelessHART® communication protocols to seamlessly integrate with valve manifolds, primary components and sealing solutions to optimize performance for measuring differential, gauge and absolute pressure. With the SuperModule™ platform, the transmitter is resistant to overpressure and line pressure, maintaining excellent performance.

Learn more about our products and contact us

Product details

Warranty: Up to 15 years limited warranty

Turndown: Up to 200:1

Communication protocol: 4-20 mA HART、WirelessHART®、FOUNDATION Fieldbus

Measuring range: Differential pressure up to 137.89 bar (2000psi), gauge pressure up to 137.89 bar (2000psig), absolute pressure up to 275.79 bar (4000psia)

Process wetted materials: 316L Stainless Steel, Alloy C-276, Alloy 400, Tantalum, Gold Plated Alloy 400, Gold Plated 316L Stainless Steel

diagnosis: Basic diagnostics, loop integrity, process intelligence, plug-in pressure tube

Certificate/Certification: SIL 2/3 certification based on IEC 61508, NSF, NACE, Hazardous Location Certification by independent third party, see full specifications for complete certification list

wireless update rate: 1 second to 60 minutes, user selectable

Power module service life: Up to 10 years, field replaceable (order separately)

wireless range: Long range (225 m), extended range (800 m), remote (225 m) and high gain remote (1 km)

Rosemount™ Series 3051 Coplanar™ Pressure Transmitter
