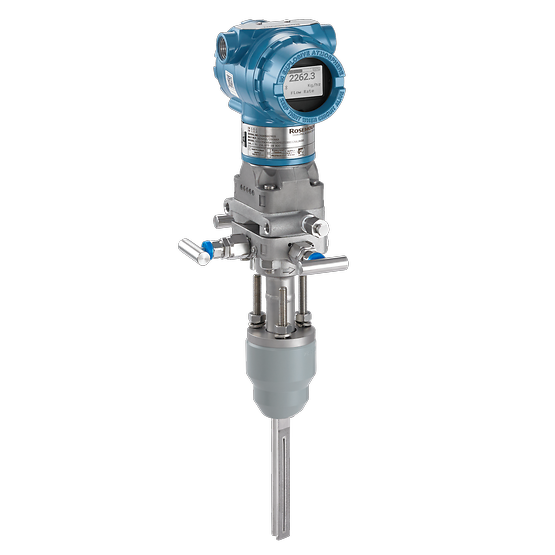

Rosemount™ 3051CFA Annubar™ Flow Meter

Rosemount™ 3051 Series

The Rosemount 3051CFA Annubar Flow Meter delivers industry-standard performance for reliable flow measurement through multiple communication protocols, including WirelessHART® technology. The sensor design can maintain a small cross-sectional area in the pipeline, reduce permanent pressure loss, and obtain flow and pressure measurements through slotted pressure pickup. Featuring a graphic backlit display, Bluetooth® connectivity, traffic-specific configurations and enhanced software features for fast access to data.

Learn more about our products and contact us

Product details

Warranty: Up to 5-year limited warranty

Turndown: Up to 150:1 (8:1 flow turndown)

Measuring range: Differential pressure up to 1000inH2O (2.48bar)

Communication protocol: 4-20 MA HART^®、WirelessHART^®, FOUNDATION™ fieldbus, PROFIBUS^®PA, 1-5 V low power HART^®

Pipe diameter: 2 to 96in. (50 to 2440mm)

Process wetted materials: 316L SST, Alloy C-276

diagnosis: Basic diagnosis, process alarm, loop integrity diagnosis, pressure tube obstruction diagnosis

Certificate/Certification: SIL 2/3 certification based on IEC 61508, NACE by independent third party^®

wireless update rate: 1 second to 60 minutes, user selectable

Power module service life: Up to 10 years, field replaceable (order separately)

wireless range: Internal antenna (225m)

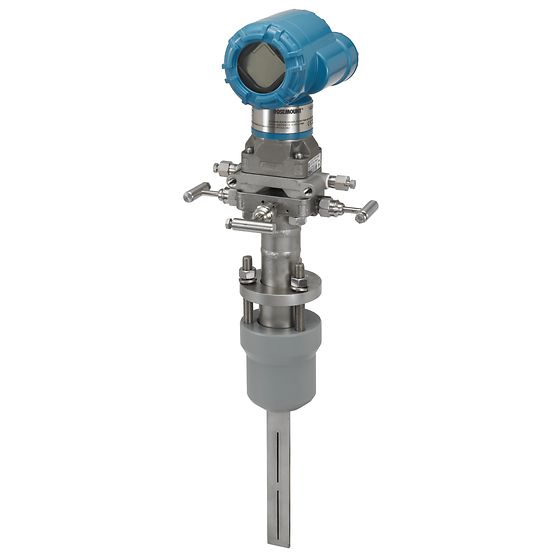

Rosemount™ 3051CFA Annubar™ Flow Meter
