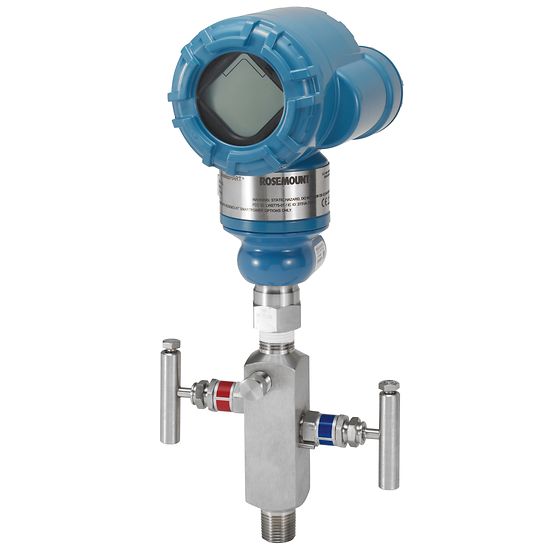

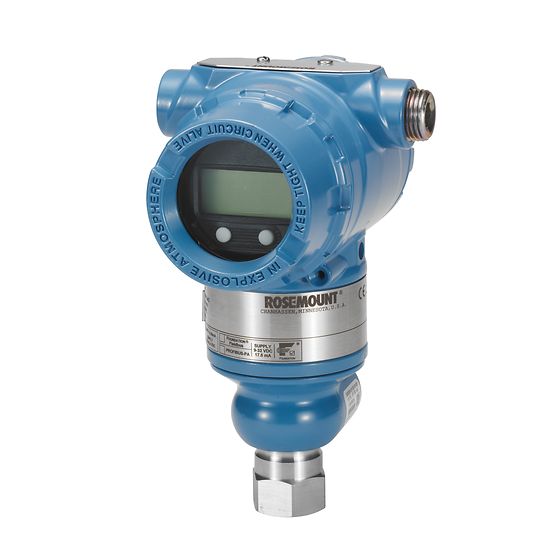

Rosemount™ 3051 Direct Connect Pressure Transmitter

Rosemount™ 3051 Series

Reliably measure pressure and level with the Rosemount 3051 direct-connect pressure transmitter. Offering 10 years of installation stability and 0.04% of span accuracy, this exceptional pressure transmitter gives you the information you need to run, control and monitor your processes. Featuring a graphic backlit display, Bluetooth® connectivity, and enhanced software features for fast access to data.

Learn more about our products and contact us

Product details

Warranty: Up to 5-year limited warranty

Turndown: Up to 150:1

Communication protocol: 4-20 MA HART^®、WirelessHART^®, FOUNDATION™ fieldbus, PROFIBUS^®PA, 1-5 V low power HART^®

Measuring range: Gauge pressure up to 1378,95bar (20000psig)
Absolute pressure up to 1378,95bar (20000psia)

Process wetted materials: 316L Stainless Steel, Alloy C-276, Alloy 400, Tantalum, Gold Plated 316L Stainless Steel, Gold Plated Alloy 400

diagnosis: Basic diagnosis, process alarm, loop integrity diagnosis, pressure tube obstruction diagnosis

Certificate/Certification: SIL 2/3 Third party certified to IEC 61508, NSF, NACE^®, Hazardous location certification, please refer to the complete specification sheet for a complete certification list

wireless update rate: 1 second to 60 minutes, user selectable

Power module service life: Up to 10 years, field replaceable (order separately)

wireless range: Internal antenna (225m)
