Rosemount™ 3051SAL Level Transmitter

Rosemount™ 3051 Series

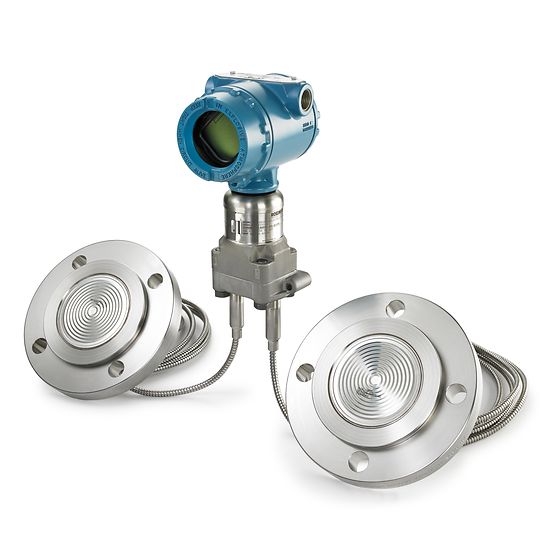

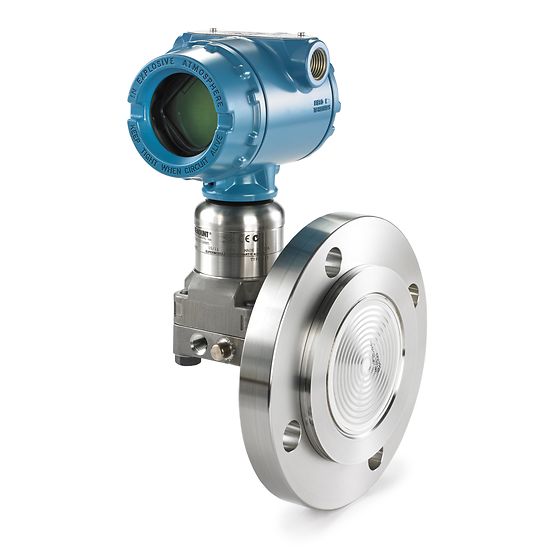

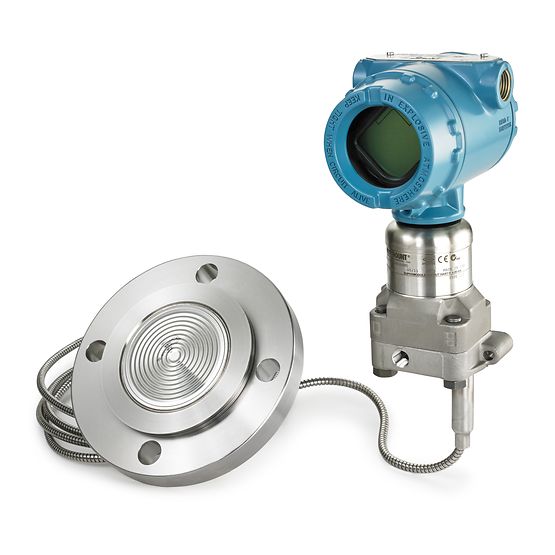

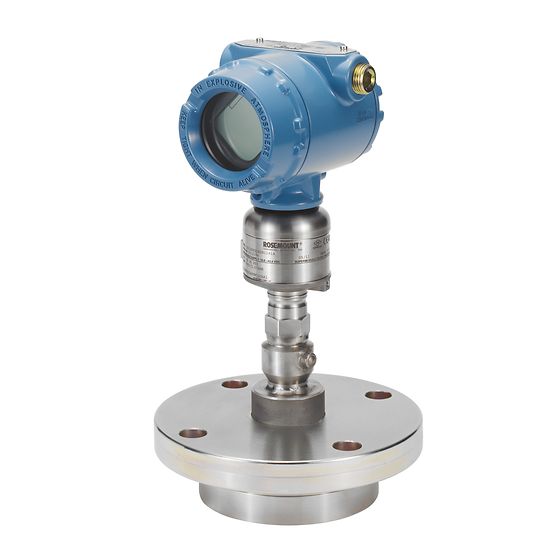

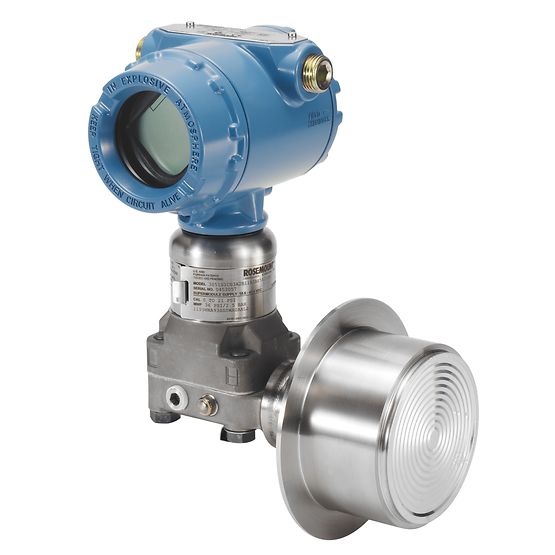

The Rosemount 3051SAL Level Transmitter is an industry-leading solution for reliable pressure measurement in extreme conditions while improving level measurement capabilities in pressurized and vented storage tanks. The transmitter is safety certified and has advanced diagnostics to provide insight into the situation. With your choice of direct mount, remote mount, balanced system and Tuned-System™ components, the unit can meet the needs of liquid level applications and process requirements.

Learn more about our products and contact us

Product details

Maximum working pressure: Up to 10,000psi (689.48 bar)

Process temperature range: Based on fill fluid: Maximum 770°F (410°C), Minimum: -157°F (-105°C)

Communication protocol: 4-20mA HART®、WirelessHART®, FOUNDATION™ fieldbus

Seal system type: Direct installation, remote installation, adjustable system, balanced system

Transmitter connections: Repairable welding, fully welded

process connections: Flange: ANSI/ASME, EN/DIN, GOST and JIS
�Threaded type: NPT, DIN, ISO
�Hygienic type

Process wetted materials: 316L Stainless Steel, Alloy C-276, Alloy 400, Tantalum, Gold Plated Alloy 400, Gold Plated 316L Stainless Steel, see full specifications for complete materials list

diagnosis: Basic diagnostics, loop integrity, process intelligence, plug-in pressure tube

Certification: SIL 2/3 certification based on IEC 61508, NACE® certification, 3A certification, hazardous location certification by independent third party, see full specifications for complete list of certifications

Rosemount™ 3051SAL Level Transmitter
