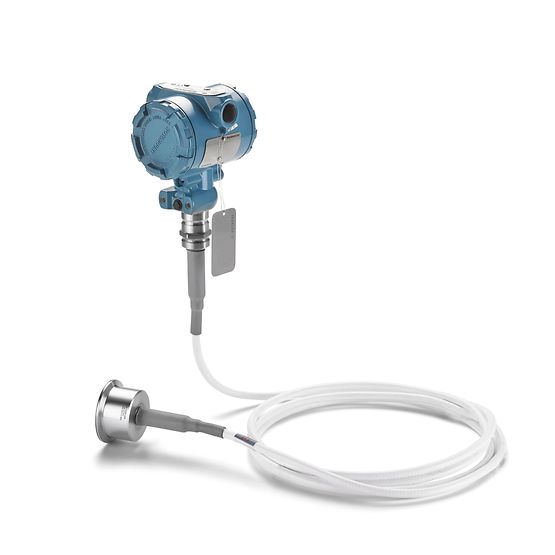

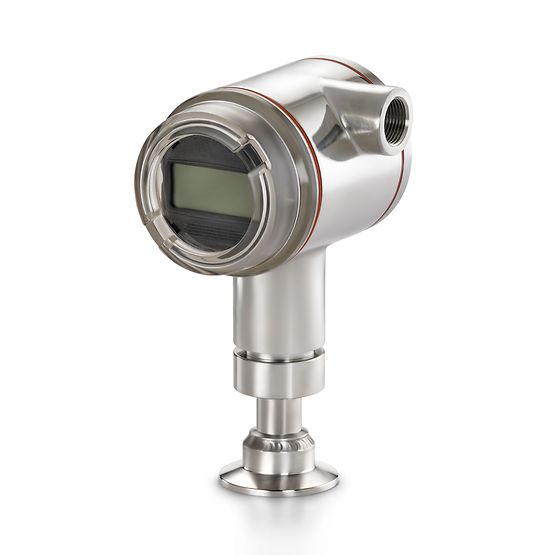

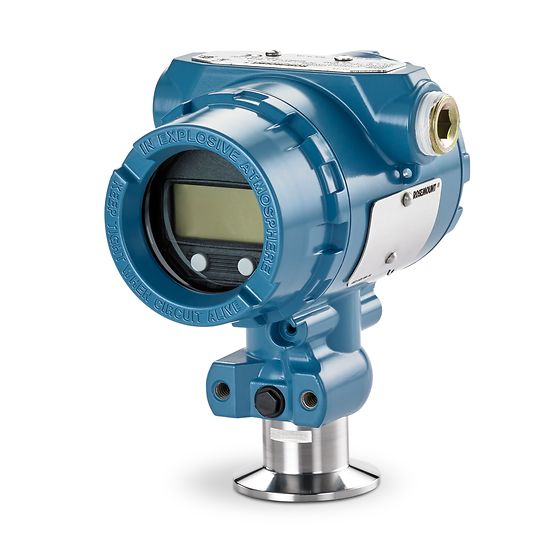

Rosemount™; 3051HT Hygienic Pressure Transmitter

Rosemount™ 3051 Series

The Rosemount 3051HT hygienic pressure transmitter is a best-in-class solution providing gauge and absolute pressure measurement for the pharmaceutical and food and beverage industries. The transmitter features industry-standard process connections that require no special mounting hardware to connect to sanitary fittings. The unit complies with 3-A™, EHEDG and ASME-BPE industry standards and is available with a polished stainless steel housing option.

Learn more about our products and contact us

Product details

Warranty: Up to 5-year limited warranty

Turndown: Up to 100:1

Communication protocol: 4-20mA HART™
FOUNDATION ™ Fieldbus
PROFIBUS®

Measuring range: Up to 800 psig (55.7 bar) Gage, Up to 150 psia (10.3 bar) Absolute

Process wetted materials: 316L stainless steel mechanically polished and electropolished to Ra < 15 µ-in.(0.38 µ-m)

diagnosis: Basic diagnostics, circuit integrity

Certification: 3A, EHEDG, ASME-BPE, see full specifications for full list of certifications

Process wetted materials: 316L stainless steel mechanically polished and electropolished to Ra < 15 µ-in (0.38 µ-m)

diagnosis: Basic diagnosis, enhanced consultation and diagnosis

Certification/Accreditation: 3A, EHEDG, ASME-BPE, see full specifications for complete list of certifications
