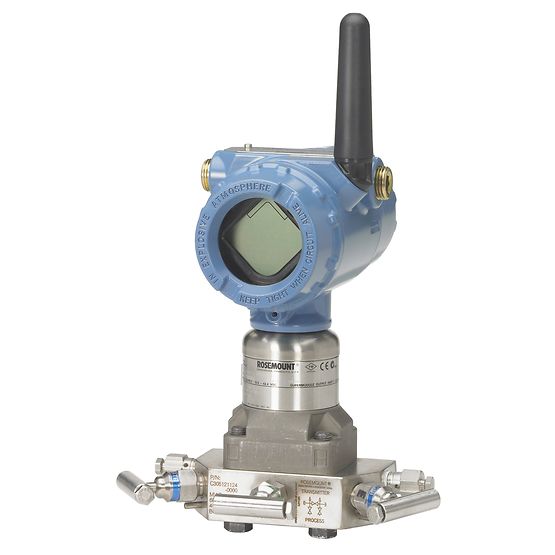

Rosemount™ 3051S Wireless MultiVariable™ Flow Meter

Rosemount™ 3051 Series

The Rosemount 3051S Wireless MultiVariable Flow Transmitter is a best-in-class multivariable solution that provides measurements over a secure WirelessHART® network. This cost-effective flow measurement transmitter provides direct variable measurement of differential and static pressures without wiring costs. The device also enables rapid detection of instrument measurement points and standardization of a single model number.

Learn more about our products and contact us

Product details

Warranty: Up to 15 years limited warranty

Turndown: Up to 200:1

Measuring range: Differential pressure up to 2000 psi (138 bar), static pressure up to 6092 psi (420 bar)

output: Differential pressure, static pressure, module temperature, scaling variables

Communication protocol: WirelessHART®

Process wetted materials: 316L Stainless Steel, Alloy C-276, Tantalum, Gold Plated 316L Stainless Steel

diagnosis: basic diagnosis

Certification: NSF Certification, NACE® Certification, Hazardous Location Certification, see product data sheet for complete list of certifications

update rate: 1 second to 60 minutes, user selectable

Power module service life: Up to 10 years, field replaceable (order separately)

wireless range: Long range (225 m), extended range (800 m), remote (225 m) and high gain remote (1 km)
