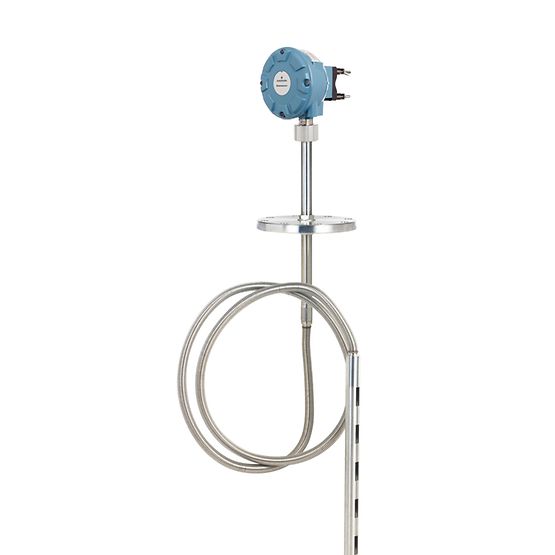

Rosemount™ 2240S Multipoint Input Temperature Transmitter
Rosemount™ Temperature Transmitter Series
The Rosemount 2240S is a proven performer and is now certified for use in demanding custody transfer applications that require accurate temperature measurement to calculate net standard volume. It can be used with the Rosemount 565, 566 or 765 temperature sensor. The Rosemount 2240S can connect up to sixteen 3-wire or 4-wire temperature point elements and an integrated water level sensor. From each single point temperature element, combined with the corresponding liquid level value, the average liquid temperature is provided and the net volume is calculated. Its temperature conversion accuracy is excellent at ± 0.05 °C (± 0.09 °F).
Product details
- Accuracy
- ±0.05 °C (±0.09 °F). Within the measuring range and the ambient temperature is 20 °C (68 °F).
- Ambient temperature effect
- ±0.05 °C（±0.09 °F）。
- Measuring range
- For Pt-100, -200 to 250 °C (-328 to 482 °F) is supported.
- resolution
- Per API Chapter 7 and Chapter 12 ± 0.1 °C (± 0.1 °F)
- Number of point elements
- Up to 16 RTD point components:
• 3-wire shared return line or independent line.
• 4 independent lines.
- Sensor type
- Supports Pt-100 (conforms to IEC/EN60751, ASTM E1137) and Cu-90.
- Communication protocol
- Foundation™ Fieldbus connects to the Rosemount 2410 via a self-configuring Tankbus or Foundation™ Fieldbus master system.
- custody transfer certification
- OIML R85:2008 and national certifications such as PTB, NMi, etc.
- Simulation function
- Can be integrated with traditional tank gauging systems.
- Metering seal
- Supports simulation of communication protocols from other manufacturers: such as Enraf, L&J Tankway, Varec Mark/Space, Whessoe, GPE, Sakura and Tokyo Keiso.
- power supply
- • FISCO: 9.0 - 17.5 VDC does not differentiate between positive and negative poles (eg 2410 Tank Hub).
• Entity: 9.0 - 30.0 VDC does not distinguish between positive and negative poles.
- ambient temperature
- -40 to +70 °C (-40 to +158 °F).
Minimum starting temperature is -50 °C (-58 °F).
