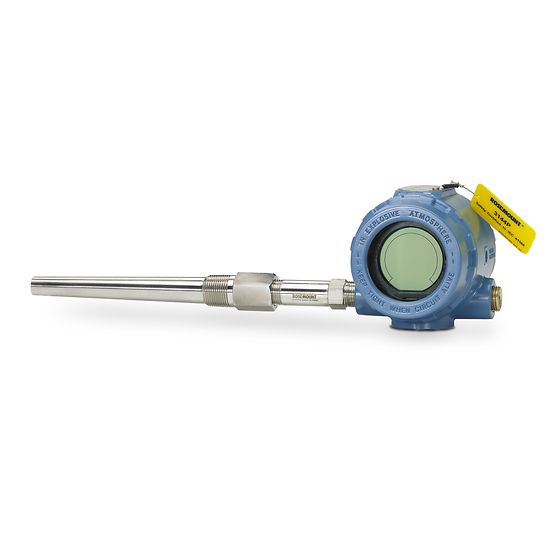

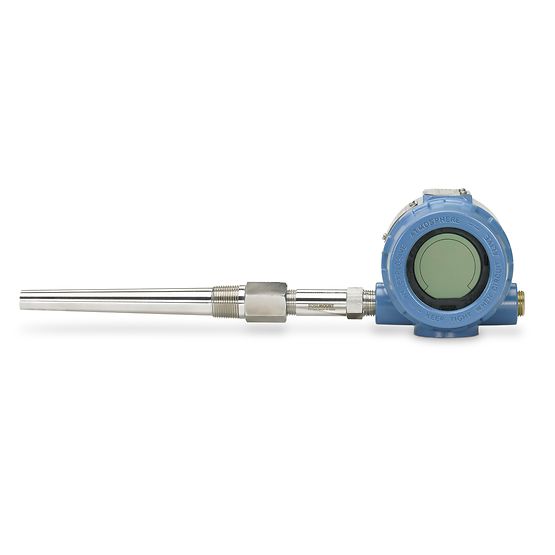

Rosemount™ 3144P Temperature Transmitter

Rosemount™ Temperature Transmitter Series

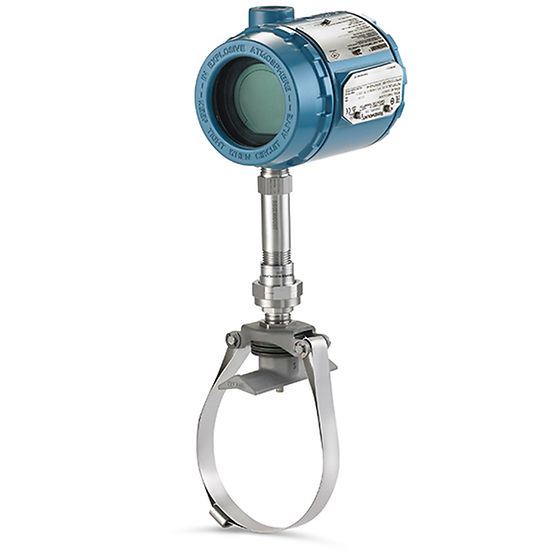

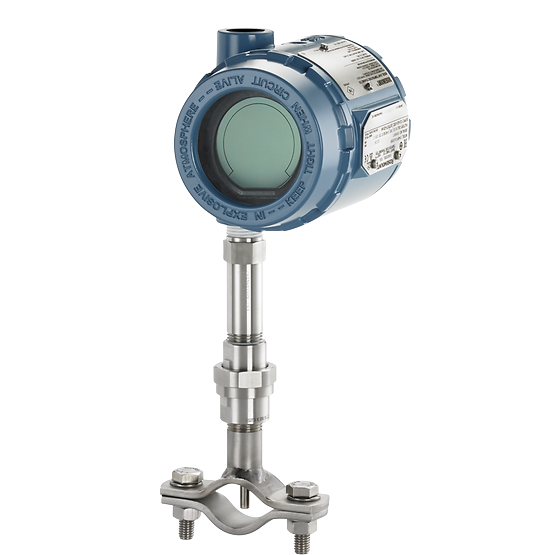

The Rosemount 3144P temperature transmitter gives you temperature measurement with industry-leading accuracy, stability and reliability. The transmitter's dual-chamber housing ensures reliability and advanced diagnostics to keep your measuring point up and running. This transmitter combines Rosemount X-well™ technology with the Rosemount 0085 pipe clamp sensor to accurately measure process temperature, eliminating the need for a thermowell or process penetration.
Product details
enter
Supports universal sensor input (RTD, T/C, mV, ohms) and supports single or dual sensor assembly
Output signal
4-20 mA /HART™ protocol, FOUNDATION™ fieldbus protocol
shell
Dual cavity on-site installation
Display/Interface
Large LCD with percentage range graphics and buttons/switches
diagnosis
Basic diagnostics, Hot Backup™ function, sensor drift warning, thermocouple aging, min/max tracking
Calibration options
Transmitter-sensor matching (Calender-Van Dusen constant), custom adjustment
Certificate/Certification
Independent third party certified to SIL 2/3, hazardous location, marine version according to IEC 61508, see full certification list for details
