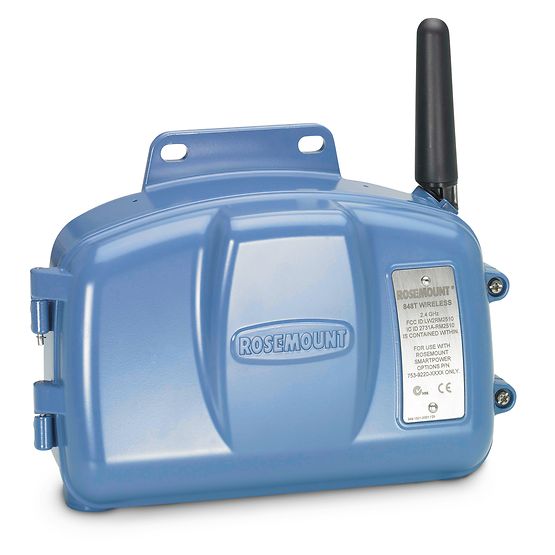

Rosemount™ 848T Wireless Temperature Transmitter
Rosemount™ Temperature Transmitter Series
The Rosemount 848T Wireless Temperature Transmitter is the preferred choice for performing high-density measurements using WirelessHART® protocol devices. The transmitter accepts up to four independently configurable inputs, significantly reducing installation and operating costs per measurement point through the use of a smart, reliable, secure wireless network. Additionally, the field-hardened housing can be installed close to any process, even in hazardous areas.
Product details
- enter
- Four independently configurable inputs including 2-, 3-, and 4-wire RTD, thermocouple, 0-1000mV and 0-10V, 2-, 3-, and 4-wire ohms, and 4-20 mA signals
- Output signal
- WirelessHART® protocol
- shell
- Field-hardened aluminum housing
- Calibration options
- 5 point calibration
- Certificate/Certification
- Hazardous location, marine version, see full list of certifications for details
- update rate
- 4 seconds to 60 minutes, user selectable
- Power module service life
- Up to 10 years, field replaceable (order separately)
- Antenna type
- External (standard and extended range)
