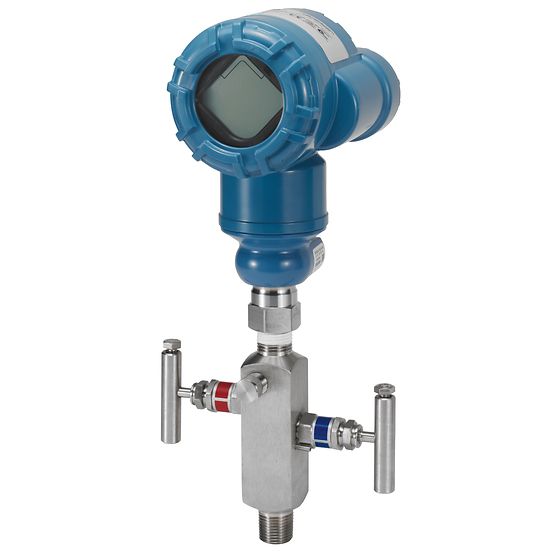

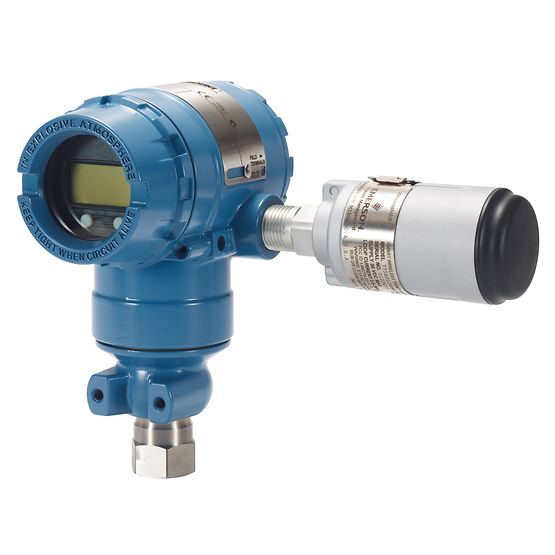

Rosemount™ 2051 Wireless Direct Connect Pressure Transmitter

Rosemount™ 2051 Series

The Rosemount 2051 Wireless Direct Connect Pressure Transmitter with integrated WirelessHART® technology is a cost-effective solution for adding pressure measurement points. The industry standard for gauge and absolute pressure measurement, this transmitter is available fully assembled so you can quickly deploy the instrument even in remote locations. With wireless functionality, you can easily add measurement points, reducing installation and maintenance costs while increasing productivity.
Product details
Warranty
Up to 5-year limited warranty
Turndown
Up to 100:1
Communication protocol
WirelessHART®
Measuring range
Measures gauge pressure up to 10,000psig (689.47bar) and absolute pressure up to 10,000psia (689.47bar)
Process wetted materials
316L SST, Alloy C-276
diagnosis
basic diagnosis
Certification
NSF, NACE®, Hazardous Locations, see full specifications for complete list of certifications
update rate
1 second to 60 minutes, user selectable
Power module service life
Up to 10 years, field replaceable (order separately)
wireless range
Internal antenna (225m)
