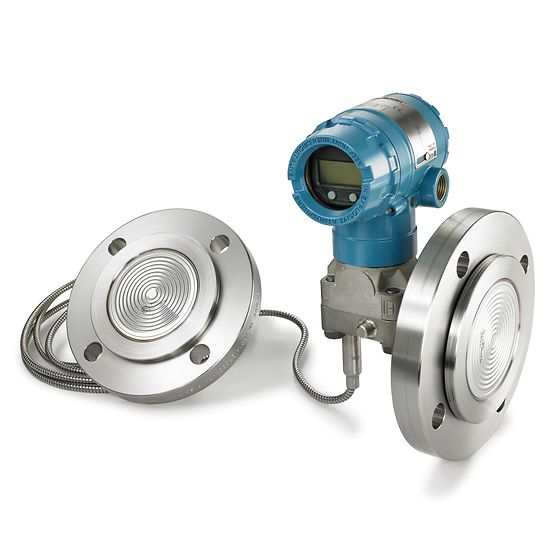

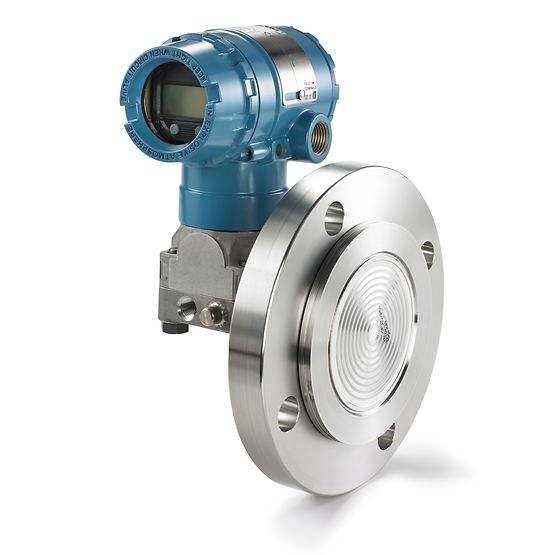

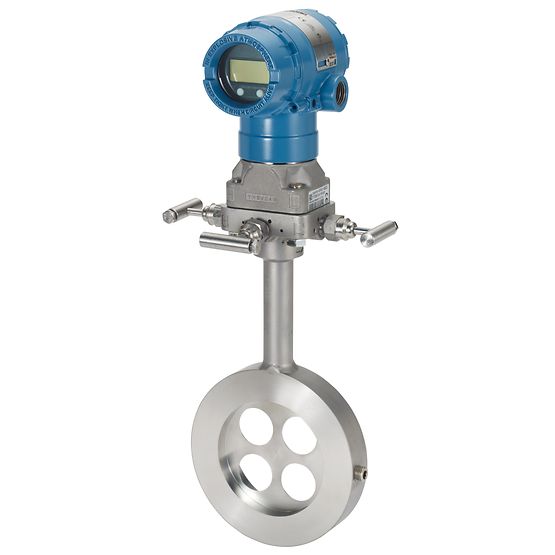

Rosemount™ 2051 Coplanar™ Pressure Transmitter

Rosemount™ 2051 Series

The Rosemount 2051 Coplanar pressure transmitter meets industry standards and is suitable for differential and gauge pressure measurements. The transmitter is safety certified and features a local operator interface with easy-to-use menus and built-in configuration buttons for easy device commissioning. This device incorporates coplanar technology to provide more flexible installation options for turnkey flow or level solutions. Optional WirelessHART® technology makes it faster to add measurement points, regardless of remote or remote locations.

Learn more about our products and contact us

Product details

Baseline accuracy: 0.05% of maximum range

Warranty: Up to 5-year limited warranty

Turndown: Up to 100:1

Communication protocol: 4-20 mA HART^®、WirelessHART^®, FOUNDATION™ fieldbus, PROFIBUS^®, 1-5 V low power HART^®

Measuring range: Measures differential pressure up to 2000 psi (137.9 bar) and gauge pressure up to 2000 psig (137.9 bar)

Process wetted materials: 316L SST, Alloy C-276, Tantalum

diagnosis: basic diagnosis

Certificate/Certification: SIL 2/3 Third party certified to IEC 61508, NSF, NACE^®, Hazardous location certification, please refer to the complete specification sheet for a complete certification list

wireless update rate: 1 second to 60 minutes, user selectable

Power module service life: Up to 10 years, field replaceable (order separately)

wireless range: Internal antenna (225m)
