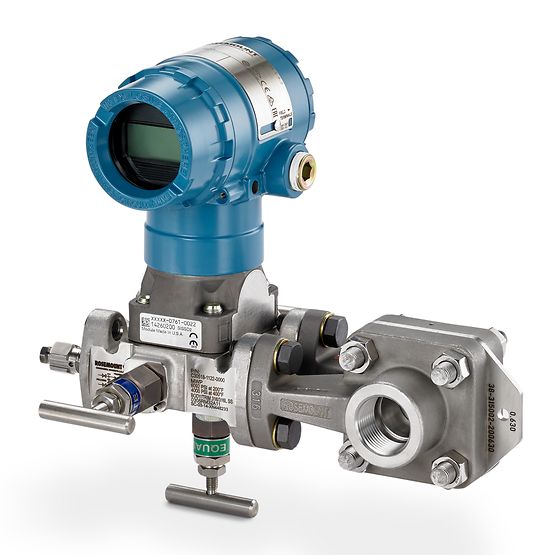

Rosemount™ 2051CFP Integrated Orifice Flowmeter Transmitter

Rosemount™ 2051 Series

The Rosemount 2051CFC Integral Orifice Flow Meter provides reliable flow measurement. This flowmeter features an integrated orifice primary element on the included spool for accurate flow measurement in small size lines (15 - 40mm or 0.5 - 1.5in). This safety-certified transmitter also features a local operator interface (LOI) for easy on-site commissioning. The device offers multiple communication protocols, including WirelessHART®.

Learn more about our products and contact us

Product details

Warranty: 5 year warranty

Turndown: Up to 100:1 (5:1 flow range ratio)

Measuring range: Differential pressure up to 1000inH2O (2.48bar)

Pipe diameter: 0.5 to 1.5in. (15 to 40mm)

output: Differential pressure, scaling variable

Communication protocol: 4-20mA HART®、WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS®, 1-5 V low power HART®

Process wetted materials: 316 stainless steel

diagnosis: basic diagnosis

Certificate/Certification: SIL 2/3 certification based on IEC 61508, NACE® certification, hazardous location certification by independent third party, see full specifications for complete list of certifications

update rate: 1 second to 60 minutes, user selectable

Power module service life: Up to 10 years, field replaceable (order separately)

wireless range: Internal antenna (225m)

Rosemount™ 2051CFP Integrated Orifice Flowmeter Transmitter
