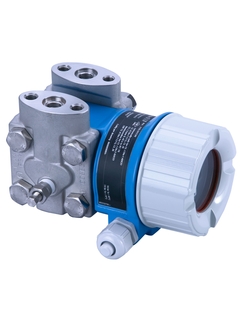

Differential pressure measurement Deltabar PMD55

pressure

The Deltabar PMD55 differential pressure transmitter uses a piezoresistive sensor and a welded metal diaphragm. It is mainly used for differential pressure measurement of liquids, steam and gases in the process industry or environmental protection industry. The measurement range is adjustable and quick setting simplifies the debugging process, reduces costs and saves time. Comply with IEC61508/IEC61511 standards and meet SIL3 safety requirements. For liquid level, volume or mass measurement, differential pressure monitoring of filters and pumps, and for use with pressure sensing elements to measure gas, vapor and liquid flow (volume flow or mass flow)

Learn more about our products and contact us

Product details

Reference accuracy: 0.1%, platinum version: up to ±0.075%

Range ratio: 100:1 or higher

Integrated transmitter

Use DIP switches for quick debugging

Simple and safe menu-guided operation: - via the local display module: - via 4...20 mA HART - via PROFIBUS PA, - via FF Foundation fieldbus

Modular continuity measurement of differential, static and pressure pressures (Deltabar M - Deltapilot M, Cerabar M), e.g. - Interchangeable displays, - Universal electronics for pressure and differential pressure measurement

Extensive certification and international use

Process connection: thread

Process temperature: -40...85°C (-40...185°F)

Measuring range: 0.5mbar ... 40bar (0.0072 ... 600psi)

Accuracy: ±0.1%, "Platinum" ±0.075% (optional)

International explosion-proof certification, SIL

Differential pressure measurement Deltabar PMD55
