Electronic differential pressure transmitter
pressure

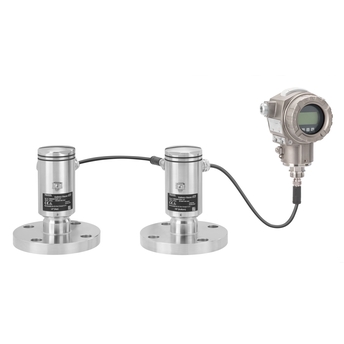

The electronic differential pressure transmitter Deltabar FMD71 is a differential pressure system consisting of two sensors and a transmitter for level, volume or mass measurement of liquids in pressurized tanks or distillation columns/evaporators. One sensor is used for static pressure measurement (high pressure) and the other sensor is used for top pressure measurement (low pressure). Based on the above two digital pressure values, the transmitter calculates the liquid level value (electronic differential pressure). Electronic differential pressure measurement systems eliminate problems associated with traditional differential pressure measurements.
Product details
The dry measuring cell Ceraphire is fully vacuum-, corrosion- and wear-resistant
Eliminates traditional mechanical issues and has higher process applicability and reliability
Adopts new electronic differential pressure system structure and design to minimize safety risks
Minimize the cost of use due to shortened installation time, maintenance time, downtime, and reduced spare parts requirements
Multi-variable liquid level measurement: based on HART communication, measuring differential pressure, top pressure and sensor temperature of the same system
Continuously identify the health status of the entire system through HART diagnostics
High repeatability and long-term stability
Used for level, volume or mass measurement of liquids in pressurized tanks or distillation towers/evaporators.
Process connections: threaded, flanged, flush-mounted hygienic connections
Temperature: –25...+150°C (–13...+302°F), optional 350°C (662°F)
Measuring range: 100mbar...40bar (1.5...600psi)
Measurement accuracy: The highest accuracy of a single sensor is ±0.05%, and the highest accuracy of the system is ±0.07%
Obtained international explosion-proof certification and hygienic certification
