ASCO™ Series 290D Pressure Operated Piston Valve
ASCO series

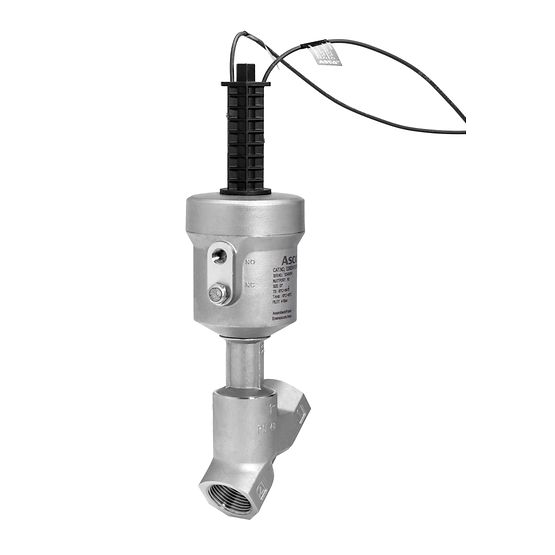

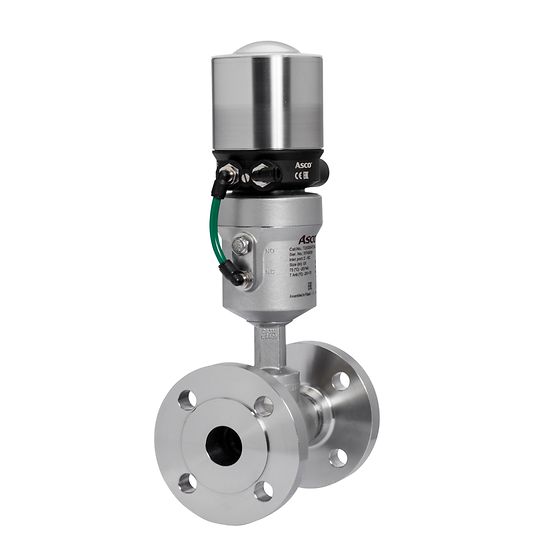

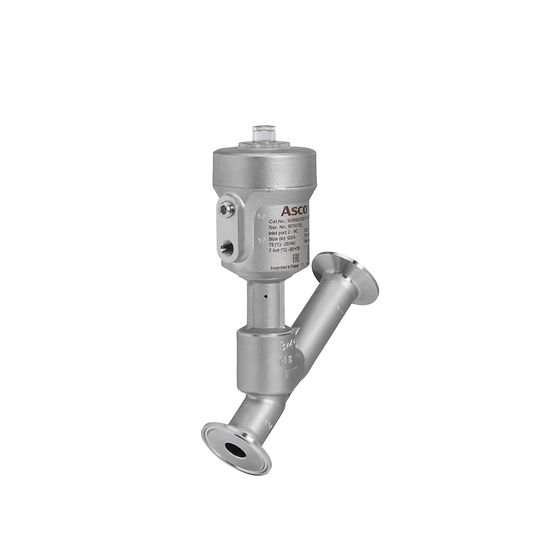

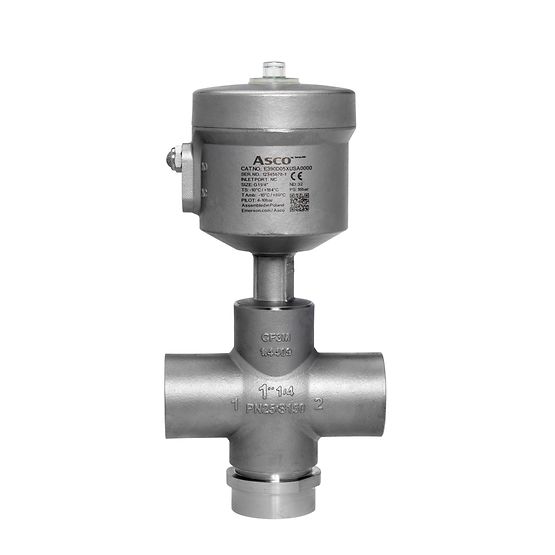

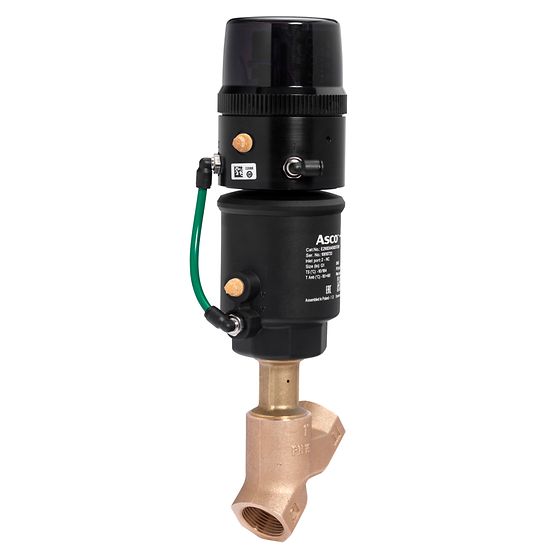

The ASCO Series 290 is a pneumatically actuated, direct-acting angle seat valve designed for use in demanding applications. Available in brass or stainless steel straight-through valve body designs. The valve is suitable for general applications (air, inert gases, water, oil), as well as for steam, hot water and auxiliary fluids. Available in a variety of options, certifications, and features.
Product details
- valve action
- Pneumatic - air pilot
- Valve body material
- Brass, stainless steel
- media
- Corrosive liquid/gas, air, inert gas, fuel, hot water, light oil, oxygen, steam, water
- Pipe/Hole Size
- 3/8"；1/2"；3/4"；1"；1 1/4"；1 1/2"；2"；2 1/2"
- port type
- NPTF, G/RP, butt welding, clamp, flange
- Function
- 2/2 normally closed, 2/2 normally open, 2/2 bistable, 3/2 normally closed, 3/2 normally open
- flow
- 2.8Kv to 111Kv
- working environment
- Indoor, outdoor
- Standards/Regulations
- RoHS、Reach、ATEX、IECEx、UE 1935/2004、FDA CFR21、EN161、PED、ISO 15848、SIL2、EAC
