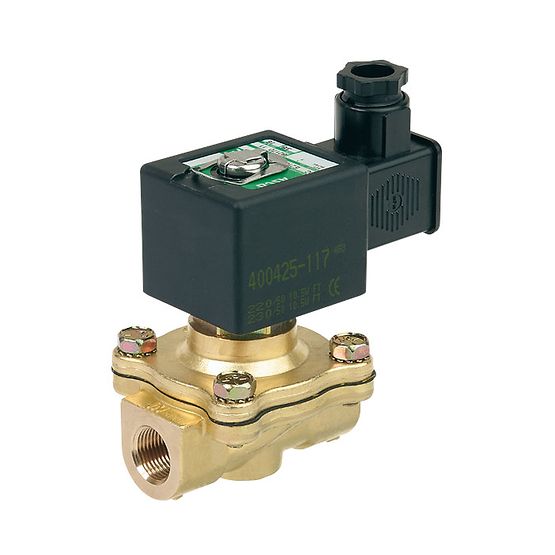

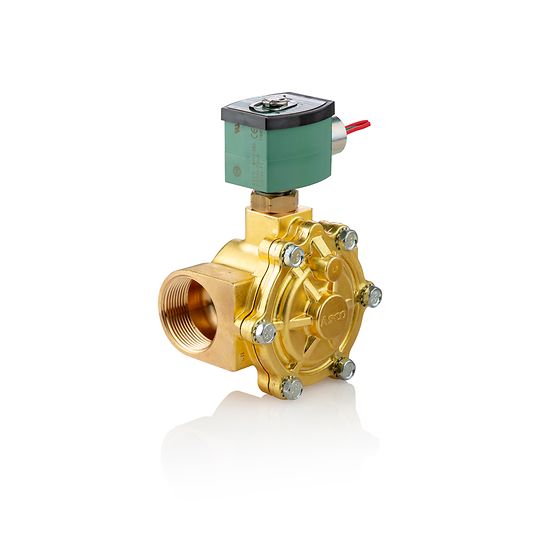

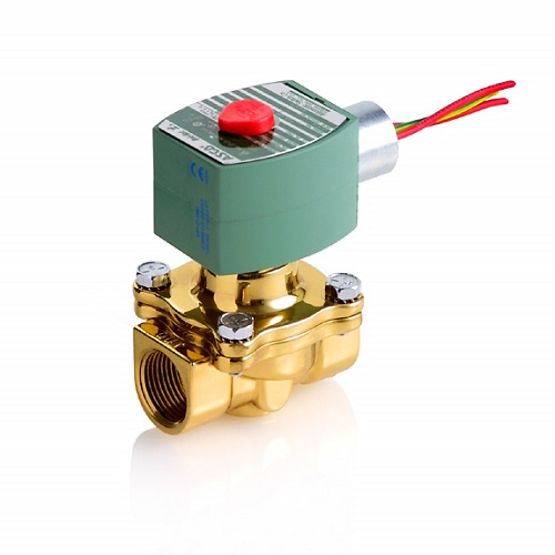

ASCO™ 210 Two-Way Solenoid Valve

ASCO series

The ASCO 210 Series (also known as the 8210) is a family of cost-effective, high-flow, general-purpose solenoid valves suitable for liquid, corrosive, and air/inert gas service. Highly reliable two-way solenoid valves are available in a wide range of pressure ratings and sizes, multiple elastomeric material options, long service life and low internal leakage. Suitable for a variety of industrial applications including car wash equipment, air compressors, pumps, laundry equipment and industrial water control.

Learn more about our products and contact us

Product details

Valve actuation method: electromagnetic

Valve body material: Brass, stainless steel, lead-free brass, 316 stainless steel (on request)

medium: Corrosive liquid/gas, air, inert gas, ammonia, cryogenics, fuel oil, hot water, light oil, liquid propane gas, natural gas, oxygen, steam, vacuum, water

Pipe/Hole Size: 1/2 "；3/8 "；3/4 "；1 "；1 1/4 "；1 1/2 "；2 "；2 1/2 "

port type: NPTFGGGP GPFGGGP GPFGGGITING (IS 228/1)

Function: Two-way - 2/2 normally closed, Two-way - 2/2 normally open

flow: 1.3 to 39Kv, 1.5 to 45Cv

Voltage: 24 AC, 110 AC, 115 AC, 12 DC, 12 to 24 DC voltage range, 120 AC, 120 DC, 125 DC Battery charging, 208 AC, 220 AC, 230 AC, 24 DC, 24 to 120 AC/DC voltage range, 240 AC, 240 DC - 50/60, non-usable voltages on request.

Maximum differential pressure/maximum working pressure: Vacuum to 24bar, vacuum to 350psi

working environment: corrosive, hazardous, indoor, outdoor

ASCO™ 210 Two-Way Solenoid Valve
