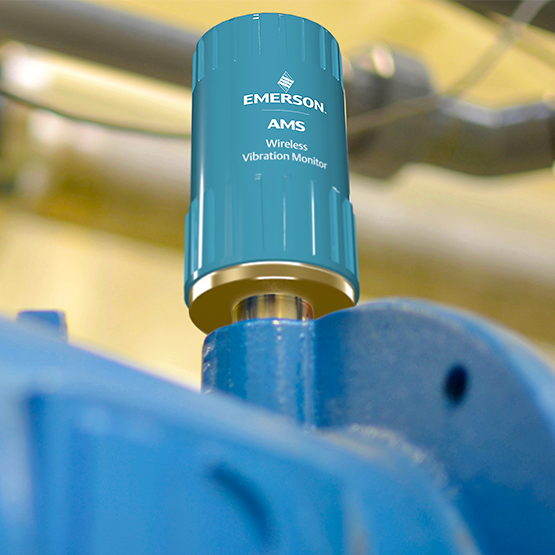

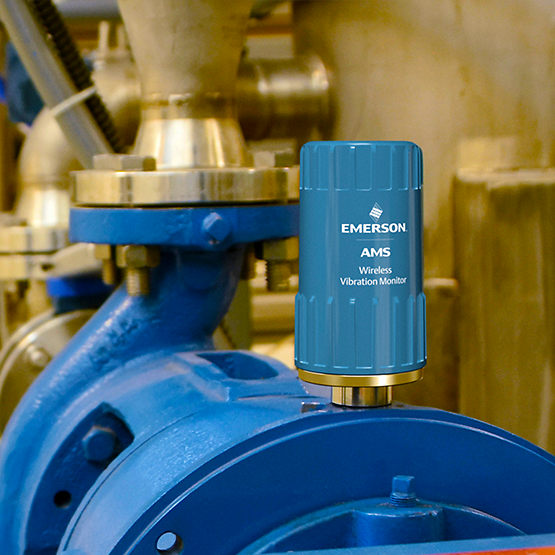

AMS Wireless Vibration Transmitter

AMS

AMS wireless vibration transmitters provide complete vibration data on a self-organizing wireless mesh network. It provides operations and maintenance personnel with rich information on the health of the machinery. Integral vibration, PeakVue measurements, and temperature readings can be easily integrated into control systems or plant historians, while diagnostic data can be displayed through AMS Equipment Manager and AMS Machinery Management software, and alerts broadcast through the AMS Optics Asset Performance Platform.

Learn more about our products and contact us

Product details

Sensors (categorized by range and frequency response): Overall vibration (Z): 80 g’s, 20,000 Hz; PeakVue Z – 80 g’s, sampled 51.2 kHz
Overall vibration (X): 16g’s, 1000 Hz; Overall vibration (Y): - 16 g’s, 1000 Hz
Temperature -40°C to +85°C

Analysis parameters: 2 speed ranges (default 2-65 Hz and 65-300 Hz) and 2 acceleration ranges (default 10-500 Hz and 500-1000 Hz)

normative analysis: Bearing/Mechanical and Lubrication Severity; Calculated Machine Speed (RPM)

Waveforms and Spectrum: Spindle (Z): User selectable FMax (200 Hz, 500 Hz, 1 kHz, 2 kHz, 5 kHz, 10kHz, 20kHz); User selectable FMin (2 Hz, 10 Hz); User selectable resolution (400, 800, 1600 LOR)
Secondary axis (X and Y): User selectable FMax (200 Hz, 500 Hz and 1000 Hz)

diagnostic abbreviated spectrum: Based on flow rate and PeakVue of 1600 LOR

working temperature: -40°C to +85°C

Working humidity: 95%, non-condensing

wireless protocol: IEC 62591WirelessHART®

broadcast range: 100m line of sight

Hazardous location certification: Check the following document to view the certificate

General certification: View datasheet for more details
