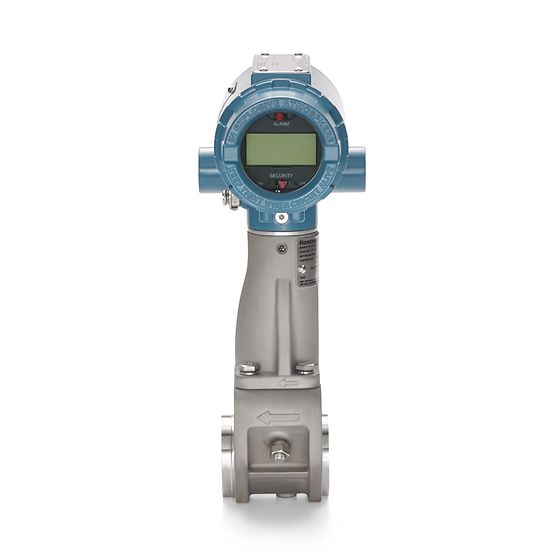

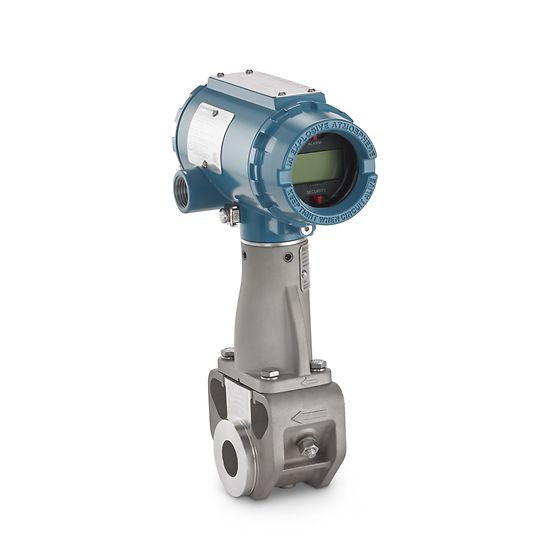

Rosemount 8800 Wafer Vortex Flowmeter

Rosemount™ 8800 Series

The Rosemount 8800 Wafer Vortex Flowmeter is a lightweight, cost-effective solution that is easy to install and ideal for utility applications. The 8800 Wafer Vortex Flow Meter offers exceptional stability with a gasket-free, non-clog meter body that eliminates potential leak points, increases availability and reduces unplanned downtime. The 8800's unique design features isolated sensors, allowing flow and temperature sensors to be replaced without breaking the process seal.

Learn more about our products and contact us

Product details

Flowmeter accuracy: ± 1.3% flow at steam pressures from 30 psia to 2,000 psia when using 8800 MultiVariable (MPA option)
± 0.65% liquid volume flow
± 1% gas and vapor volume flow

Turndown: 38:1

output: 4-20mA based on HART® 5 or 7
4-20mA based on HART® 5 or 7 and adjustable pulse output
FOUNDATION fieldbus ITK6 with 2 analog input modules, 1 backup link active scheduler function block, 1 integrator function block and 1 PID function block
Modbus RS-485 with device status and 4 variables

Wetted material: Stainless steel; 316/316L and CF3M
Nickel Alloys – C-22 and CW2M
High Temperature Carbon Steel – A105 and WCB
Low Temperature Carbon Steels – LF2 and LCC
Duplex UNS S32760 and 6A
For other wetted materials, please consult the manufacturer.

Flange options: ANSI Class 150 to 1500
FROM PN 10 to PN 160
JIS 10K to 40K
The flange surface has multiple orientations
For other flange specifications, please consult the manufacturer

operating temperature: -330°F to 800°F (-200°C to 427°C)

Pipe diameter: 1/2" to 8" (15 to 200mm)
