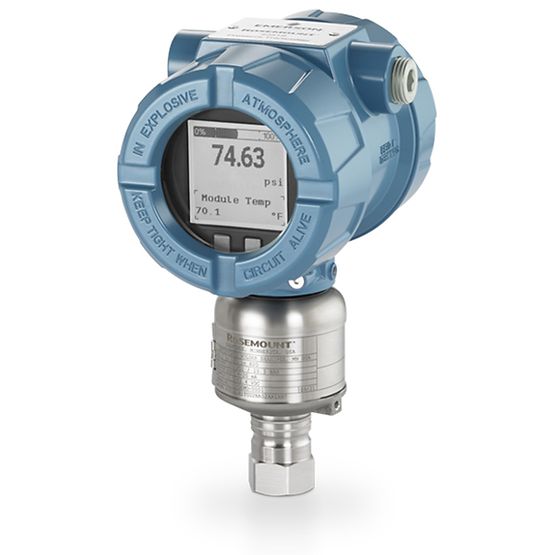

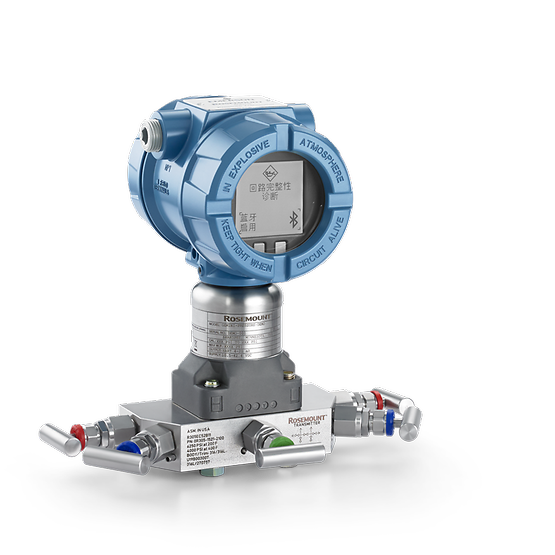

Rosemount™ 4051S Pressure Transmitter

Rosemount™ 4051 Series

The innovative features of the Rosemount 4051S pressure transmitter will help revolutionize the way you operate. Backed by the industry's best 20-year warranty and stability, the Rosemount 4051S pressure transmitter is built for harsh working conditions and harsh environments. Bluetooth® connection simplifies configuration and maintenance, prevents personnel from entering dangerous places, and improves safety. Built-in advanced diagnostics provide more in-depth device information, helping you take timely measures before operations are affected. Equipped with two built-in relay pressure switches to strengthen equipment protection and prevent the risk of overvoltage. Rosemount 4051S pressure transmitter also supports multiple configurations such as pressure, flow and liquid level.
Product details
Accuracy
0.025% range accuracy
Warranty
20 year limited warranty
Turndown
Up to 800:1
Communication protocol
4-20 mA HART®protocol
Measuring range
Differential pressure up to 2000 psi (137,89 bar)
Gauge pressure up to 10000 psig (689,47 bar)
Absolute pressure up to 10000 psia (689,47 bar)
diagnosis
Intelligent process, special pressure pipe blockage detection and loop integrity diagnosis, enhanced process alarm, basic diagnosis
Process wetted materials
316L Stainless Steel, Alloy C-276, Alloy 400, Tantalum, Gold Plated 316L Stainless Steel, Alloy 400 Gold Plated
Certificate/Certification
Certified by an independent third party to a SIL 2/3 safety rating according to IEC 61508 and NSF, NACE® and hazardous location certified (see detailed specifications for complete certification information).
Time constant/response
<50 ms
