Rosemount™ 2410 Tank Hub

Rosemount™ 2410 Series

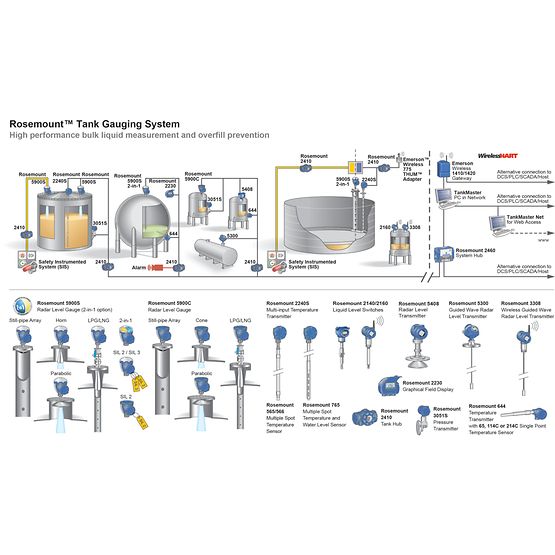

The Rosemount 2410 handles data communications between field devices and control rooms and is available in single-tank and multi-tank versions. Control room communication options include Modbus, IEC 62591 (WirelessHART® protocol), and emulation of other vendor protocols. The Rosemount 2410 can also power Rosemount field devices on FISCO compliant intrinsically safe Tankbus.
Learn more about our products and contact us
Product details
Tank hub version
Single Tank Version: Supports one Rosemount 5900S 2-in-1 level gauge or two radar level gauges, Rosemount 5300, 5408 or 5900 mounted on the same tank.
Multi-tank version: for Rosemount 5300/5408/5900 system configurations:
  • The software supports the installation of 16 field devices and 10 tanks per Hub.
  • Up to five Rosemount 5300 or ten Type 5408 level gauges per Hub.
custody transfer certification
OIML R85:2008 and national certifications such as PTB, NMi, etc.
Safety
• SIL 2 and SIL 3 certified.
• Overfill protection is TÜV tested and WHG certified.
Tankbus
Foundation™ fieldbus FISCO (self-configuring).
fieldbus
Rosemount 2410 communication TRL2 Modbus, RS485, 4-20 mA/HART, Enraf, L&J Tankway, Varec Mark/Space, Whissoe, GPE, Sakura, Tokyo KeisoWirelessHART® protocol communicates with a host or field communication unit.
Relay output
Two SIL certified relays configurable for different tanks and process variables.
Analog input
One input channel, current range: 0-23 mA.
Analog output
One output channel (SIL certified), current range: 3.5-23 mA (HART).
Simulation function
Can be integrated with traditional tank gauging systems. Supports simulating communication protocols from other manufacturers. See "Fieldbus" earlier.
Display/Interface
Integrated digital readout display: level, rate of change, air height, signal strength, volume (TOV), mean liquid temperature, 1–16 point temperatures, mean vapor temperature, ambient temperature, free water level, liquid pressure, vapor and air pressure, observed and reference densities, and flow rate.
power supply
• 24-48 VDC (-15% to +10%).
• 48-240 VAC (-15% to +10%), 50/60 Hz.
ambient temperature
-40 to +70°C (-40 to +158°F). Minimum start-up temperature is -50 °C (-58 °F).
When using LCD display: -25 to 70°C (-13 to 158°F).
